Dock Cleat

     This is a Dock Cleat for pier that i made in Solidworks.

     The cleat in nautica was a piece traditionally made of wood, currently made of metal, which serves to block a cable and thus moor the boat.

     This is a easy job creating the Dock Cleat in solidworks, and very funny too.

     I downloaded some examples like this from the internet, to have a basis on how to start.

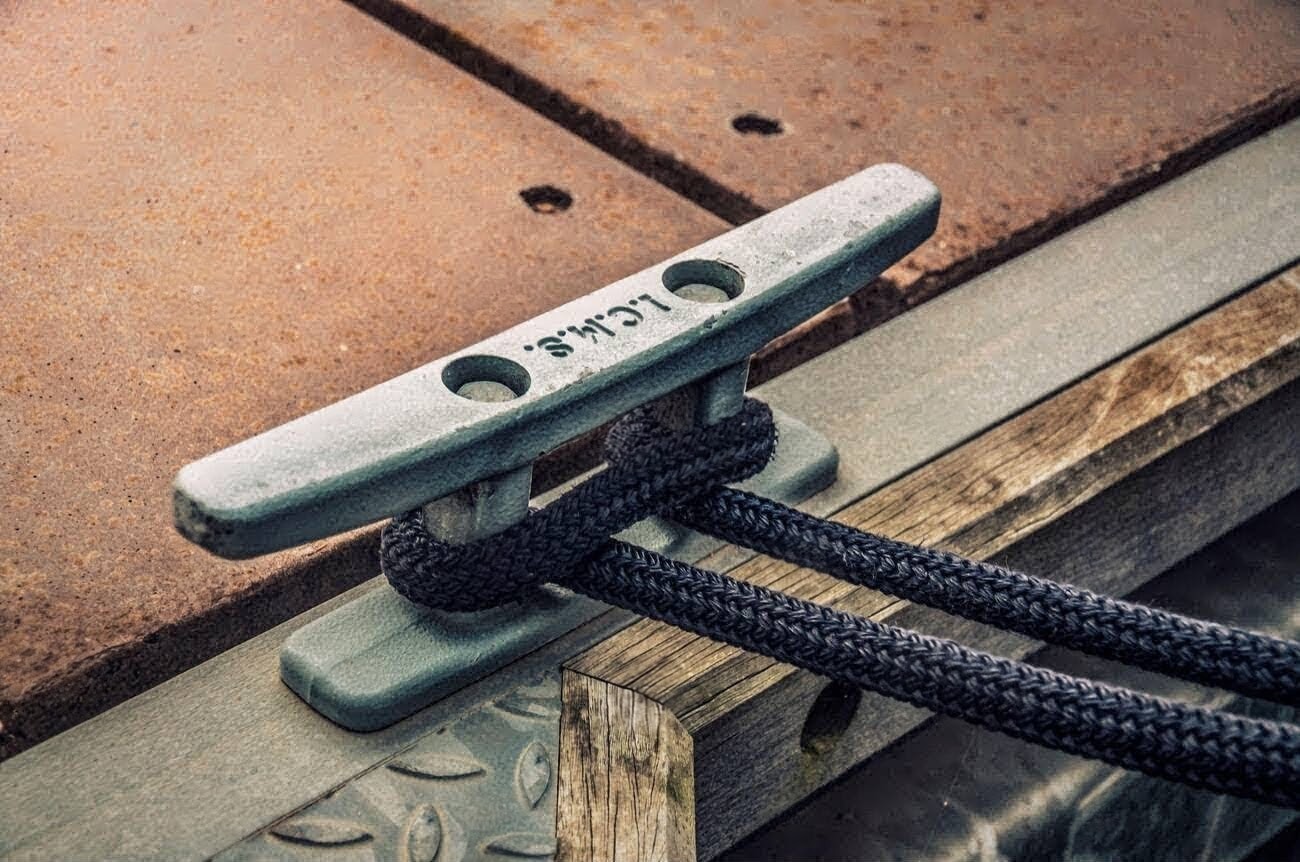

Fig.1 - Example of a Dock Cleat.

     This is the project planning with measurements on a real scale that i made in solidworks (scale in millimeters).

Fig.2 - Planning of the Dock Cleat.

     Now, the fun part, some 4k photos of the rendering of the Dock Cleat.

Fig.3 - 4k Render front.

Fig.4 - 4k Render front all.

Fig.5 - 4k Render top part.

Fig.6 - 4k Render top part with name engraving.

Fig.7 - 4k Render bottom part with the wooden piece (pier).

Fig.8 - Render with the piece cut in half to see the inside and the thread where the screw goes.
