A vented radiation shield is a passive meteorological enclosure engineered to ensure accurate ambient air measurements by minimizing radiative, conductive, and convective heat transfer errors.
Its primary function is to thermally decouple the sensor from external heat sources such as direct solar radiation, reflected infrared energy, and heat re-radiated by nearby structures, while maintaining strong atmospheric coupling through controlled airflow.
According to the World Meteorological Organization (WMO), air temperature sensors must be shielded from radiation and adequately ventilated to prevent measurement bias.
The WMO Guide to Instruments and Methods of Observation (WMO-No. 8) specifies that temperature sensors should be housed in a radiation shield that prevents direct solar exposure, minimizes radiative exchange with surrounding surfaces, and ensures sufficient airflow to maintain thermal equilibrium with the ambient air mass.
Radiative Error Mitigation
Radiative errors occur when a sensor absorbs solar or infrared radiation, causing its temperature to rise above the true air temperature.
The stacked-louver geometry of a vented radiation shield eliminates direct and reflected radiation paths by blocking line-of-sight exposure from all solar angles.
Each louver acts as an optical and thermal barrier, significantly reducing shortwave and longwave radiation reaching the internal chamber.
The use of multiple overlapping plates increases the effective radiative path length and promotes multiple internal reflections, further attenuating incoming radiation.
This approach aligns with WMO recommendations for naturally ventilated shields, which emphasize radiation blocking combined with unrestricted airflow.
Convective Airflow and Atmospheric Coupling
Unlike sealed enclosures, a vented radiation shield relies on continuous air exchange to maintain accurate measurements.
In this design, airflow is achieved through a combination of forced convection, driven by ambient wind, and natural convection resulting from internal thermal gradients.
Frontal and lateral winds are guided through the horizontal louver gaps, flushing the internal air volume and ensuring that the sensor measures the temperature of the moving air mass rather than stagnant air.
Even under low-wind conditions, heat generated by the embedded electronics and batteries creates a small buoyancy-driven airflow, producing a chimney effect that exhausts warmer air through the upper vents while drawing cooler ambient air from below.
This passive aspiration mechanism closely follows the WMO principle that adequate ventilation is essential to reduce thermal lag and ensure rapid sensor response to environmental changes.
Thermal Decoupling and Sensor Placement
The BME280 sensor is mechanically isolated and positioned near the geometric center of the shield to minimize conductive heat transfer from the enclosure walls and mounting hardware.
This placement reduces thermal coupling with structural elements that may be influenced by solar heating, wall conduction, or thermal inertia from nearby buildings.
By suspending the sensor within a shaded, well-ventilated internal volume, the design minimizes temperature gradients and ensures that the measured values closely represent the true ambient air conditions, as required by meteorological best practices.
Installation Constraints and Environmental Interaction
Although the shield is installed in a partially constrained location—between a building wall and an overhead balcony—the vented design remains effective.
The shield acts as a passive thermal buffer, preventing heat accumulation caused by façade radiation and reflected energy from the balcony ceiling.
The louver orientation and vertical venting path ensure that any heat absorbed by the enclosure or generated internally is continuously removed through convective exchange, preserving sensor accuracy even in suboptimal mounting environments.
Materials, Geometry, and Mechanical Design
The radiation shield was fully designed in SolidWorks, allowing precise control over louver spacing, wall thickness, airflow channels, and mounting geometry.
Low thermal mass and light-colored materials were selected to reduce heat absorption and promote rapid thermal equilibrium with the surrounding air.
The modular construction facilitates maintenance, sensor replacement, and future design iterations, while ensuring mechanical rigidity and long-term outdoor durability.
Performance Trade-offs and Design Rationale
While actively aspirated radiation shields offer superior performance under extreme radiative conditions, they require continuous power and introduce mechanical complexity.
This passive vented radiation shield represents an optimized compromise between measurement accuracy, power efficiency, mechanical simplicity, and long-term autonomous operation.
The design adheres closely to WMO guidelines for naturally ventilated temperature shelters, making it well-suited for low-power, battery-operated environmental monitoring stations where reliability and energy efficiency are critical.
Next Steps
The next phase of the project involves 3D printing the radiation shield and mounting it on the wall for long-term field validation.
Collected data will be compared against reference measurements to evaluate radiative error suppression, thermal response time, and overall measurement stability under varying environmental conditions.
Vented Radiation Shield Implementation
A vented radiation shield is a passive meteorological enclosure engineered to ensure accurate ambient air measurements by minimizing radiative, conductive, and convective heat transfer errors. Its primary function is to thermally decouple the sensor from external heat sources such as direct solar radiation, reflected infrared energy, and heat re-radiated by nearby structures, while maintaining strong atmospheric coupling through controlled airflow.
According to the World Meteorological Organization (WMO), air temperature sensors must be shielded from radiation and adequately ventilated to prevent measurement bias. The WMO Guide to Instruments and Methods of Observation (WMO-No. 8) specifies that temperature sensors should be housed in a radiation shield that prevents direct solar exposure, minimizes radiative exchange with surrounding surfaces, and ensures sufficient airflow to maintain thermal equilibrium with the ambient air mass.
Radiative Error Mitigation
Radiative errors occur when a sensor absorbs solar or infrared radiation, causing its temperature to rise above the true air temperature. The stacked-louver geometry of a vented radiation shield eliminates direct and reflected radiation paths by blocking line-of-sight exposure from all solar angles. Each louver acts as an optical and thermal barrier, significantly reducing shortwave and longwave radiation reaching the internal chamber.
The use of multiple overlapping plates increases the effective radiative path length and promotes multiple internal reflections, further attenuating incoming radiation. This approach aligns with WMO recommendations for naturally ventilated shields, which emphasize radiation blocking combined with unrestricted airflow.
Convective Airflow and Atmospheric Coupling
Unlike sealed enclosures, a vented radiation shield relies on continuous air exchange to maintain accurate measurements. In this design, airflow is achieved through a combination of forced convection, driven by ambient wind, and natural convection resulting from internal thermal gradients.
Frontal and lateral winds are guided through the horizontal louver gaps, flushing the internal air volume and ensuring that the sensor measures the temperature of the moving air mass rather than stagnant air. Even under low-wind conditions, heat generated by the embedded electronics and batteries creates a small buoyancy-driven airflow, producing a chimney effect that exhausts warmer air through the upper vents while drawing cooler ambient air from below.
This passive aspiration mechanism closely follows the WMO principle that adequate ventilation is essential to reduce thermal lag and ensure rapid sensor response to environmental changes.
Thermal Decoupling and Sensor Placement
The BME280 sensor is mechanically isolated and positioned near the geometric center of the shield to minimize conductive heat transfer from the enclosure walls and mounting hardware. This placement reduces thermal coupling with structural elements that may be influenced by solar heating, wall conduction, or thermal inertia from nearby buildings.
By suspending the sensor within a shaded, well-ventilated internal volume, the design minimizes temperature gradients and ensures that the measured values closely represent the true ambient air conditions, as required by meteorological best practices.
Installation Constraints and Environmental Interaction
Although the shield is installed in a partially constrained location—between a building wall and an overhead balcony—the vented design remains effective. The shield acts as a passive thermal buffer, preventing heat accumulation caused by façade radiation and reflected energy from the balcony ceiling.
The louver orientation and vertical venting path ensure that any heat absorbed by the enclosure or generated internally is continuously removed through convective exchange, preserving sensor accuracy even in suboptimal mounting environments.
Materials, Geometry, and Mechanical Design
The radiation shield was fully designed in SolidWorks, allowing precise control over louver spacing, wall thickness, airflow channels, and mounting geometry. Low thermal mass and light-colored materials were selected to reduce heat absorption and promote rapid thermal equilibrium with the surrounding air.
The modular construction facilitates maintenance, sensor replacement, and future design iterations, while ensuring mechanical rigidity and long-term outdoor durability.
Performance Trade-offs and Design Rationale
While actively aspirated radiation shields offer superior performance under extreme radiative conditions, they require continuous power and introduce mechanical complexity. This passive vented radiation shield represents an optimized compromise between measurement accuracy, power efficiency, mechanical simplicity, and long-term autonomous operation.
The design adheres closely to WMO guidelines for naturally ventilated temperature shelters, making it well-suited for low-power, battery-operated environmental monitoring stations where reliability and energy efficiency are critical.
Next Steps
The next phase of the project involves 3D printing the radiation shield and mounting it on the wall for long-term field validation. Collected data will be compared against reference measurements to evaluate radiative error suppression, thermal response time, and overall measurement stability under varying environmental conditions.

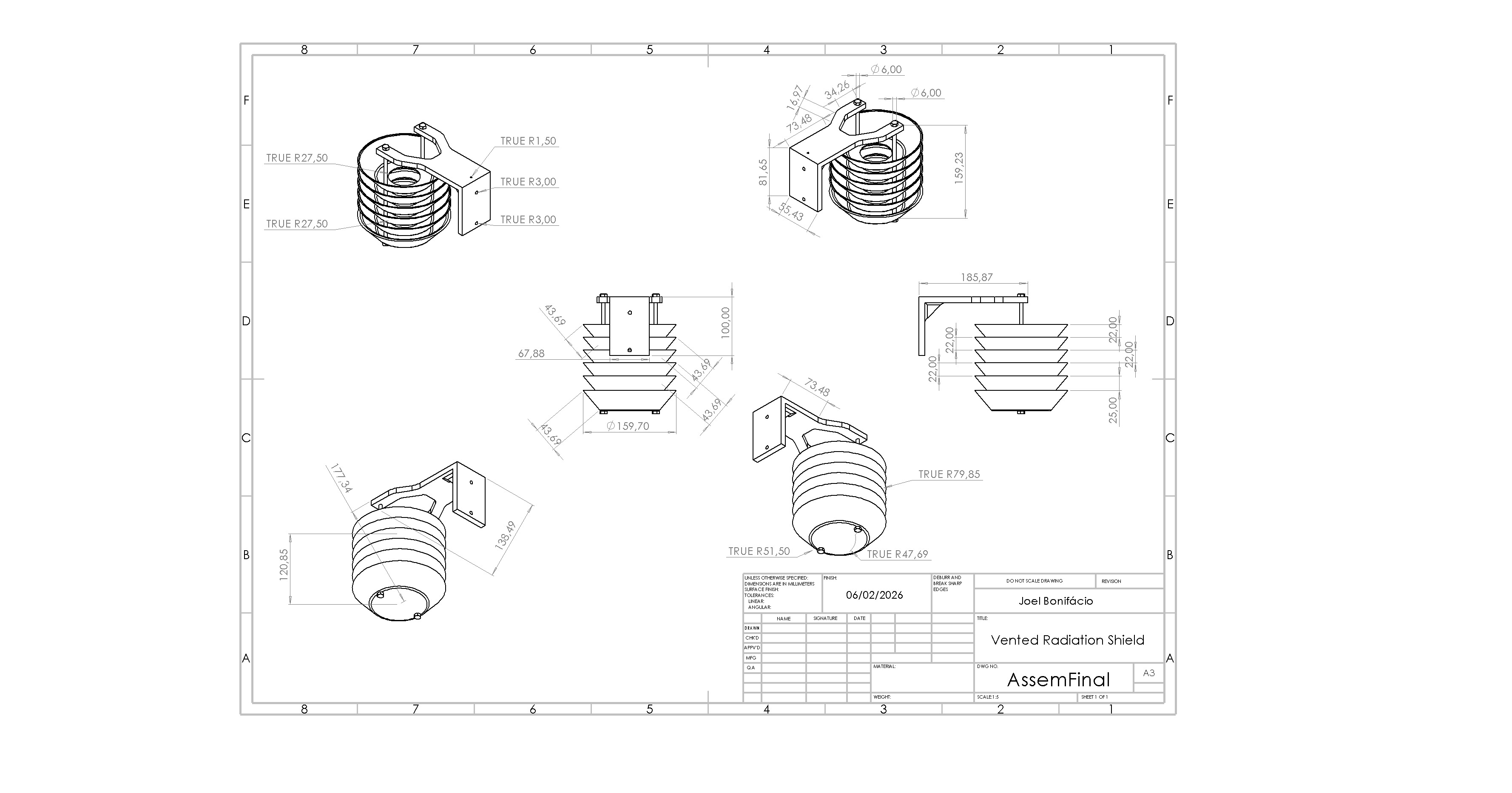

Fig.1 - 2D planning - Vented Radiation Shield.

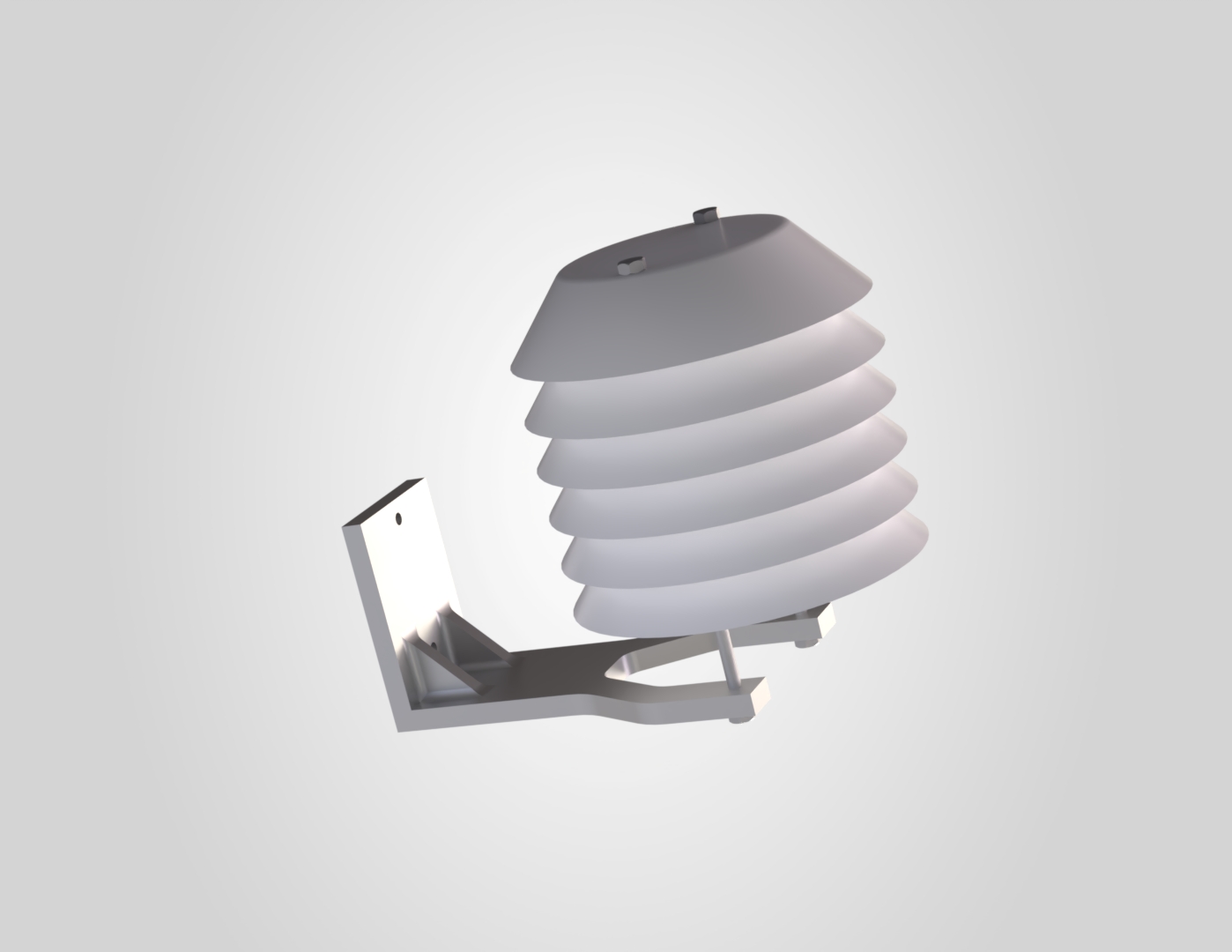

Fig.2 - Vented Radiation Shield I.

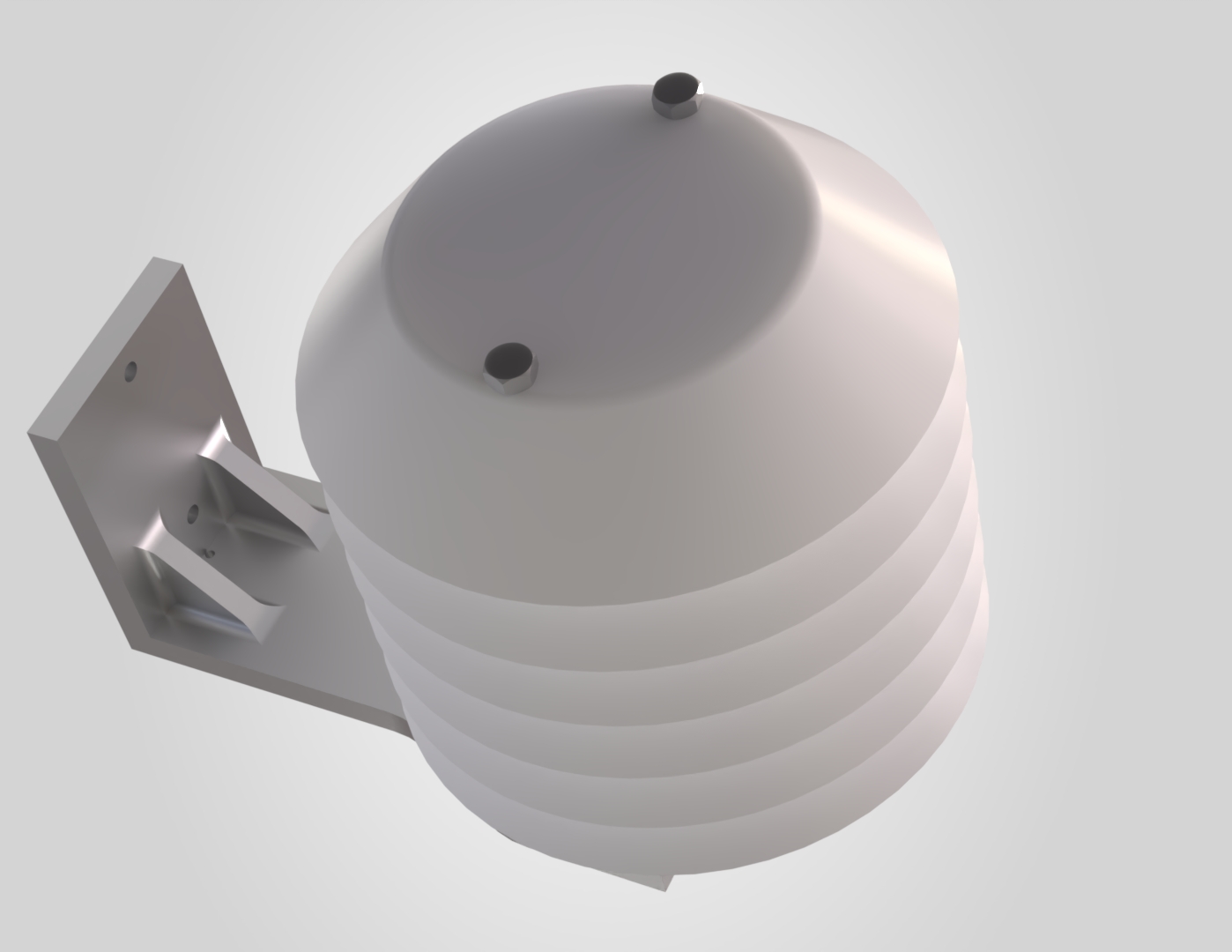

Fig.3 - Vented Radiation Shield II.

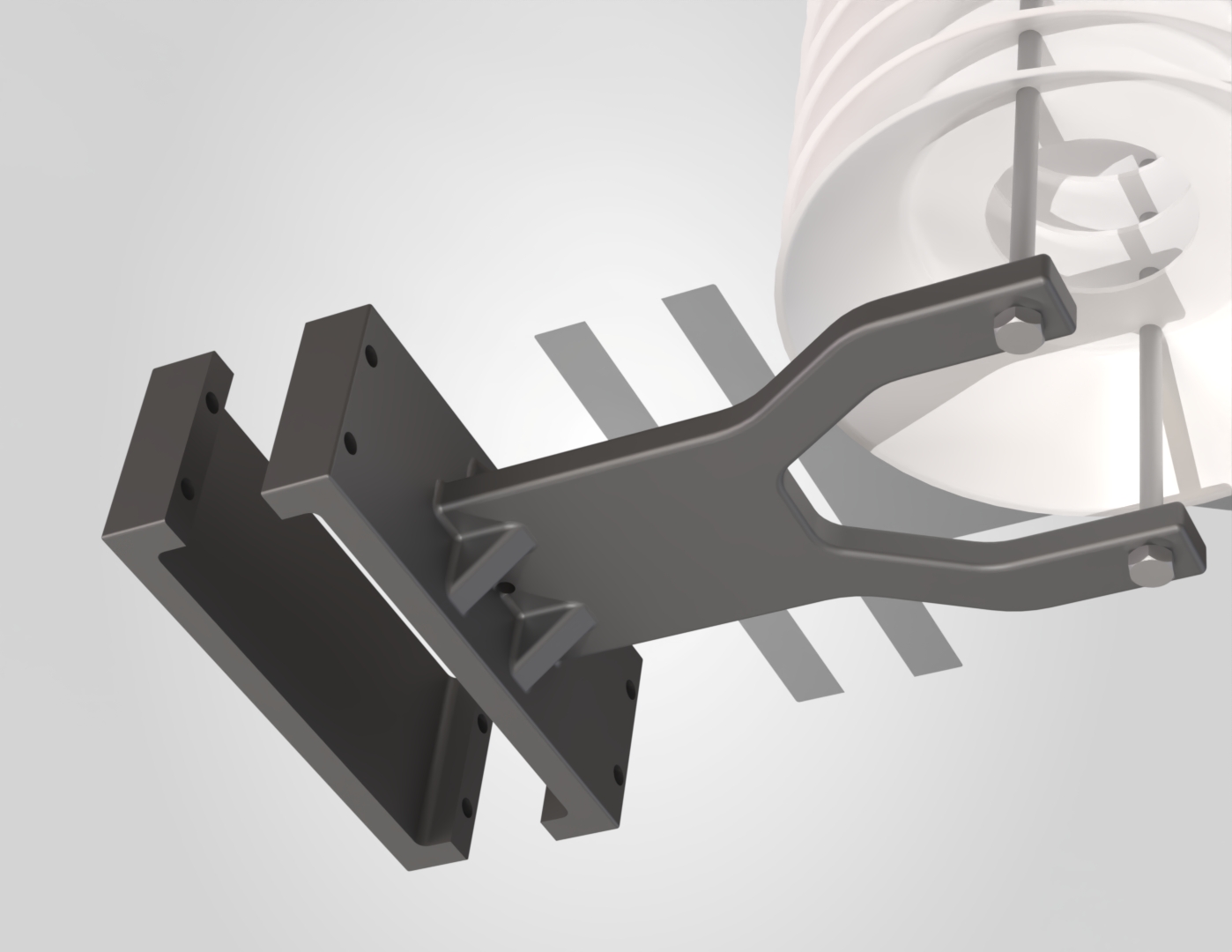

Fig.4 - Vented Radiation Shield III.

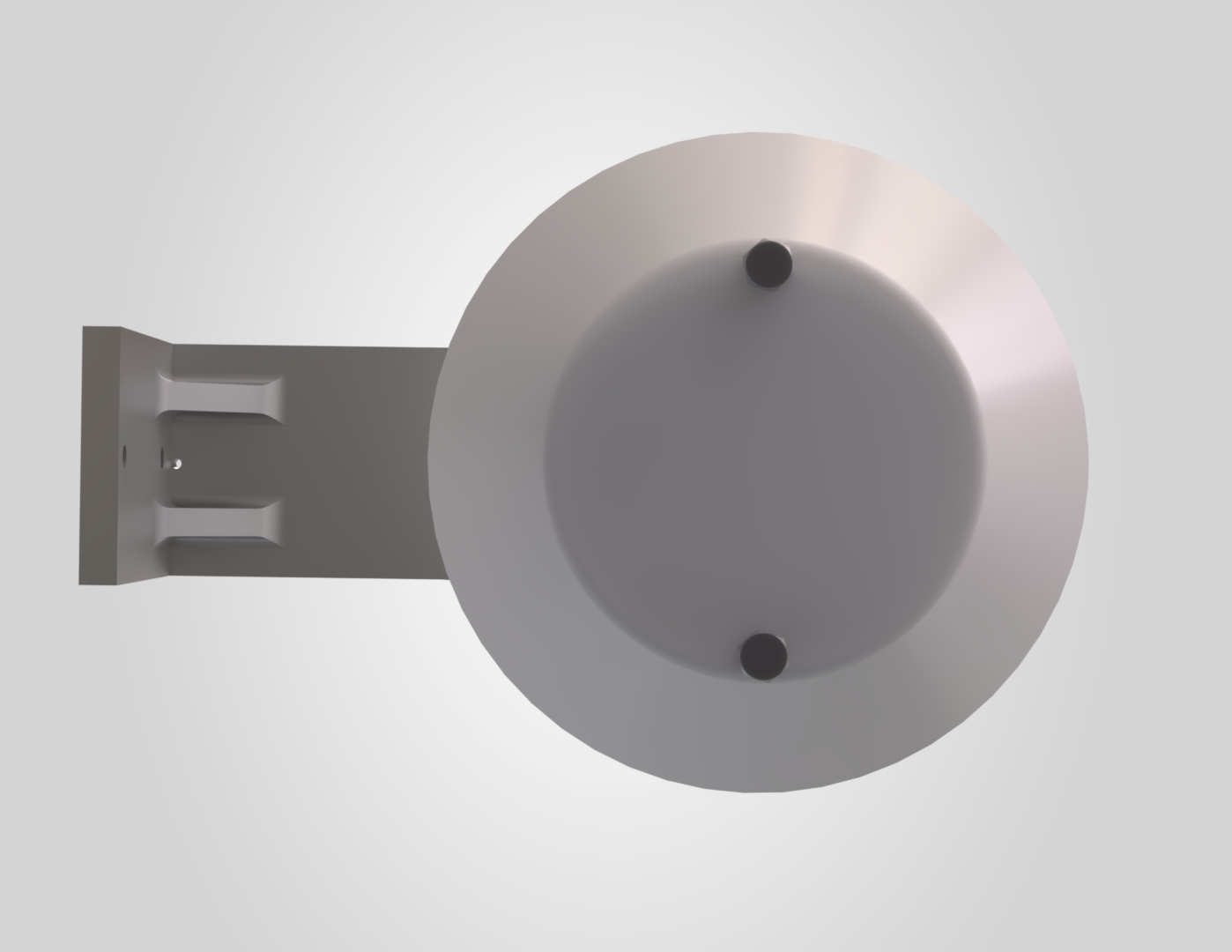

Fig.5 - Vented Radiation Shield IV.
