The images below show the original security key, which needs to be replicated.
Because people commonly lose their keys, I was asked to replicate this key and then 3D print it.
I was also asked to make an identical version, but without the metal part.
Therefore, two identical versions were made, one with the axle and the other without the axle.

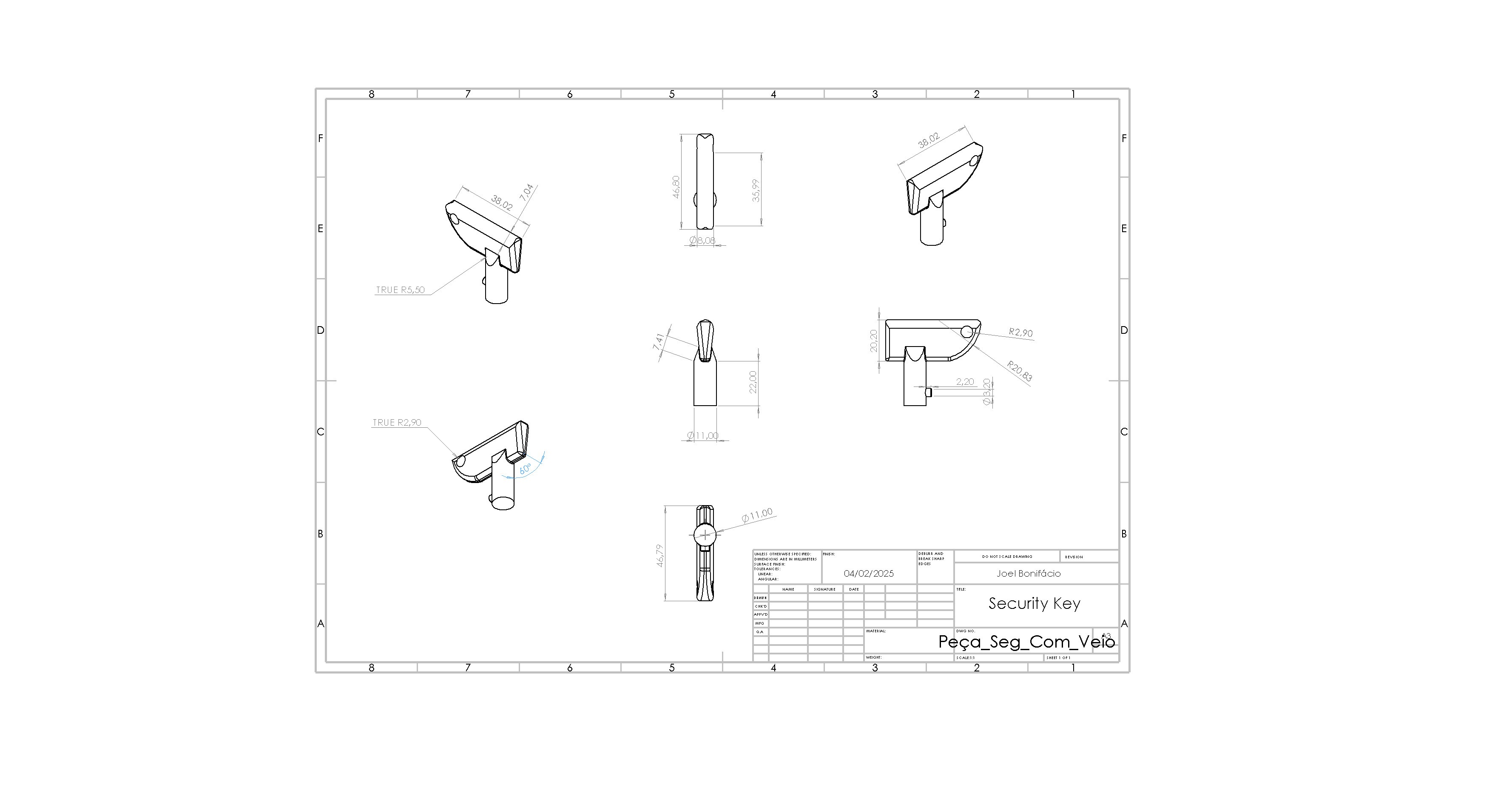

2D planning with actual measurements taken from the original key:
Fig.7 - 2D planning - security key.
Here are some renders of the key. I always try to create a render of the final piece to get a more realistic idea of the end result.
With shaft:
Fig.8 - Render in HD - security key with shaft I.
Fig.9 - Render in HD - security key with shaft II.
Fig.10 - Render in HD - security key with shaft III.
Without shaft:
Fig.11 - Render in HD - security key without shaft I.
Fig.12 - Render in HD - security key without shaft II.
Fig.12 - Render in HD - security key without shaft III.
Now, is time for 3D Printing. Let´s go...
Security Key
The images below show the original security key, which needs to be replicated.
Because people commonly lose their keys, I was asked to replicate this key and then 3D print it.
I was also asked to make an identical version, but without the metal part.
Therefore, two identical versions were made, one with the axle and the other without the axle.
2D planning with actual measurements taken from the original key:
Fig.7 - 2D planning - security key.
Here are some renders of the key. I always try to create a render of the final piece to get a more realistic idea of the end result.
With shaft:

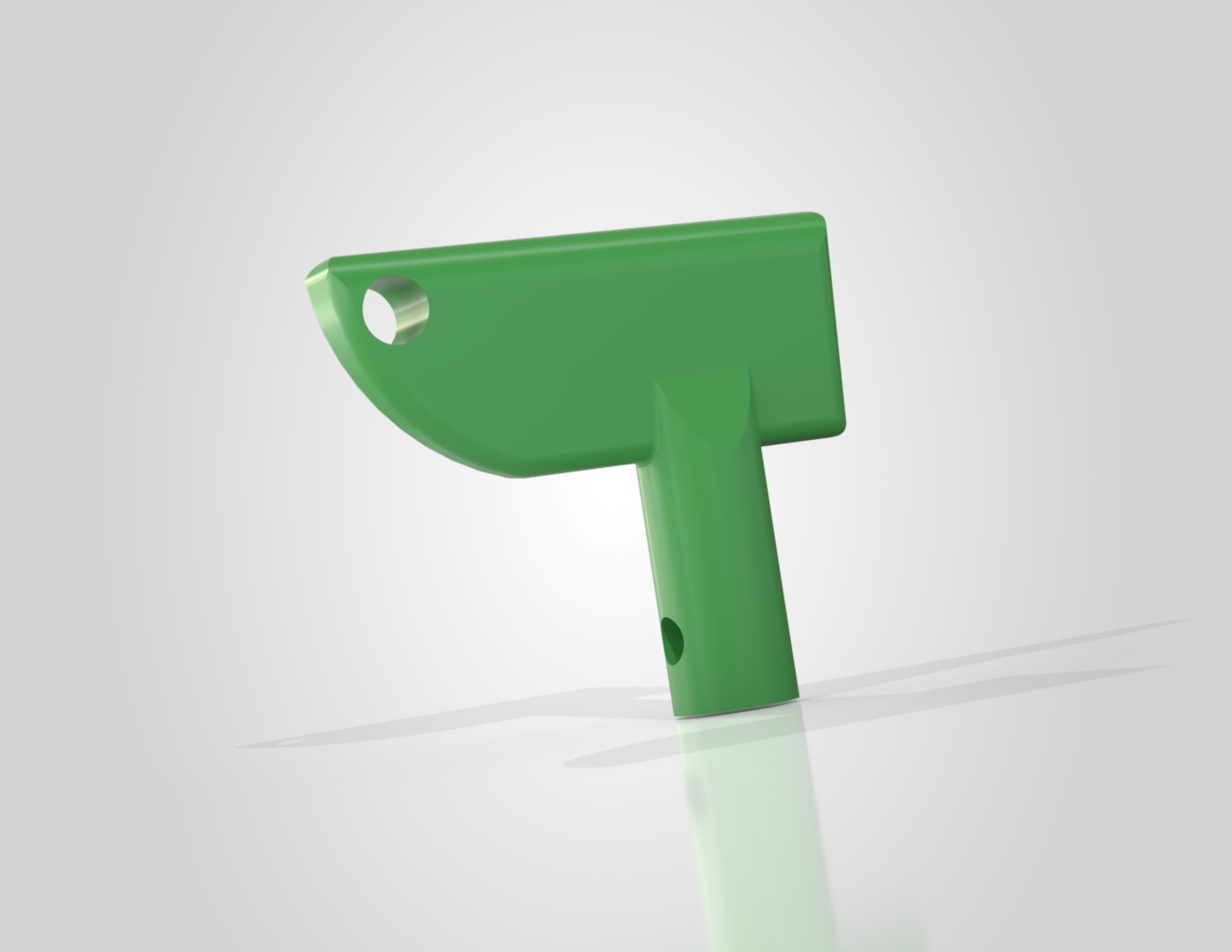

Fig.8 - Render in HD - security key with shaft I.

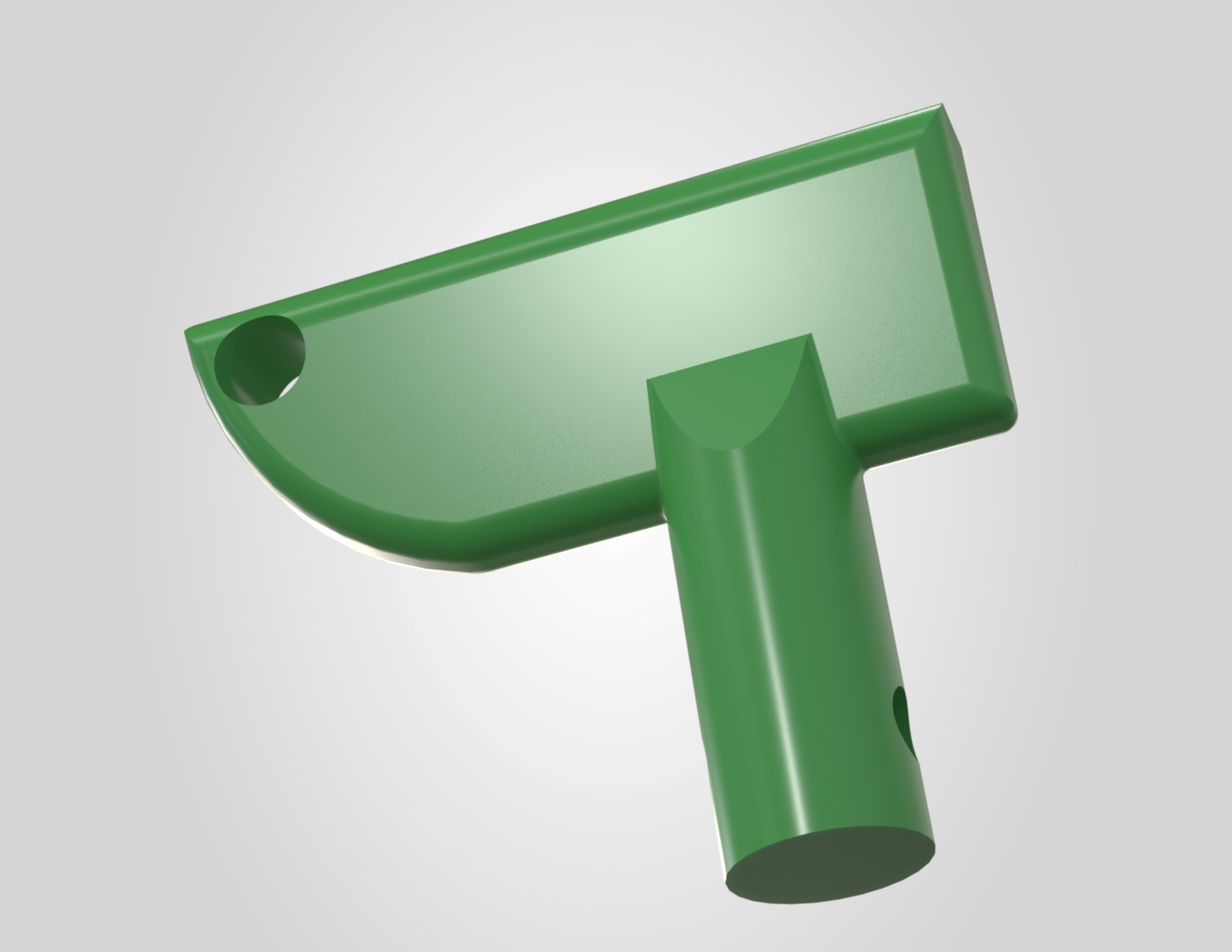

Fig.9 - Render in HD - security key with shaft II.

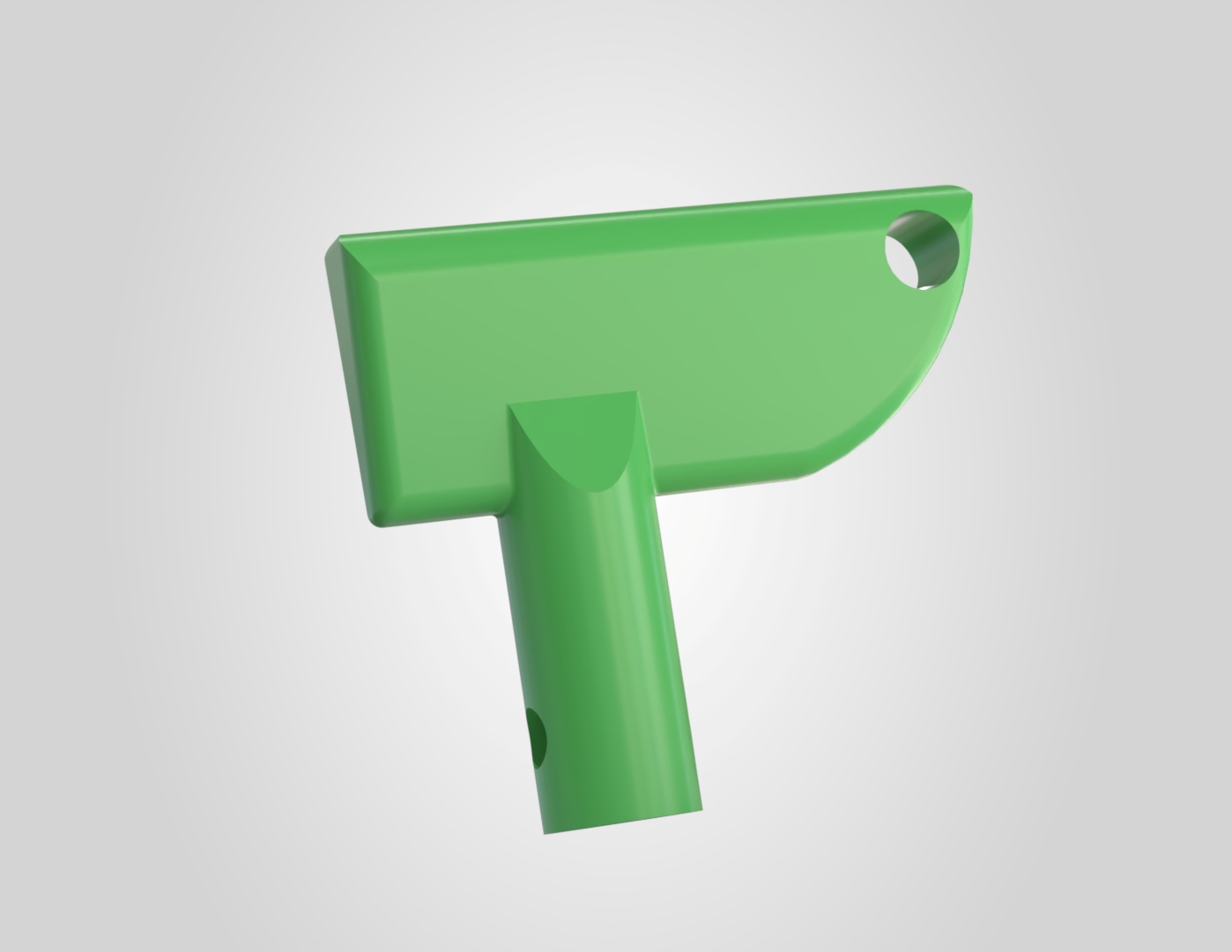

Fig.10 - Render in HD - security key with shaft III.
Without shaft:

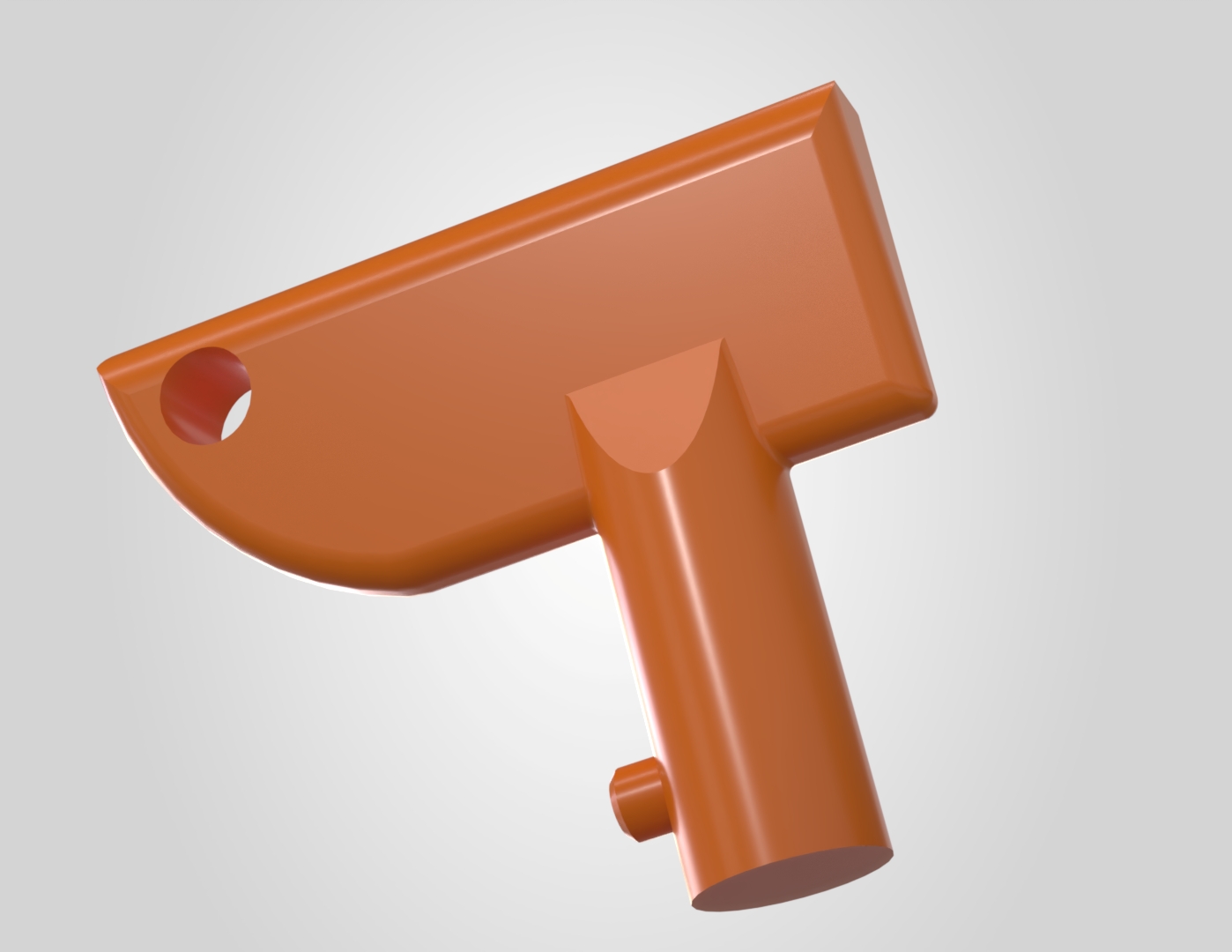

Fig.11 - Render in HD - security key without shaft I.
Fig.12 - Render in HD - security key without shaft II.
Fig.12 - Render in HD - security key without shaft III.
Now, is time for 3D Printing. Let´s go...
