Tripod Cell Phone Holder

    When i need to take some pictures or do some filming, had the need to adapt my phone to the tripod

    So i decided to make a piece that fits my tripod and my cell phone. And use my 3D printer to print the piece. (My Cell phone is Huawei Mate 20 Pro).

    After several prototypes made and small adjustments, this is what i chose:

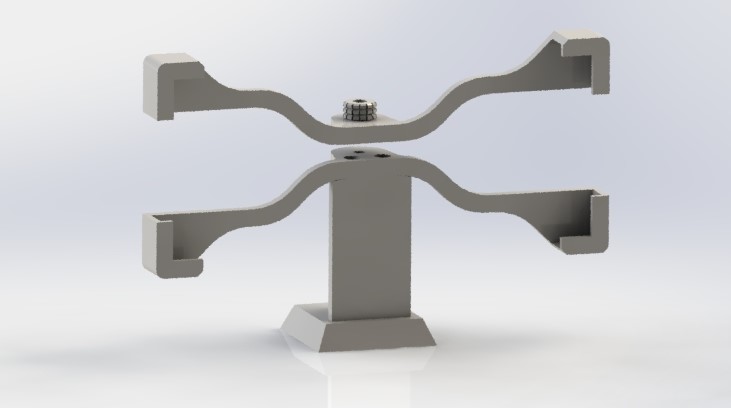

Fig.1 - Final render front view.

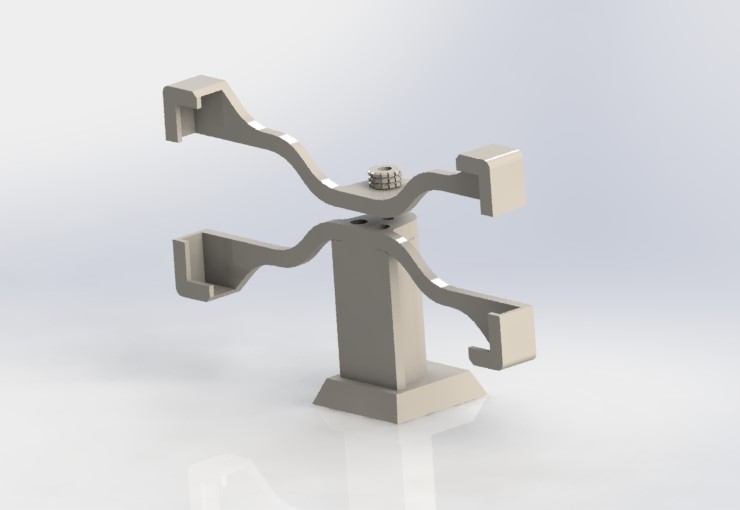

Fig.2 - Final render side view.

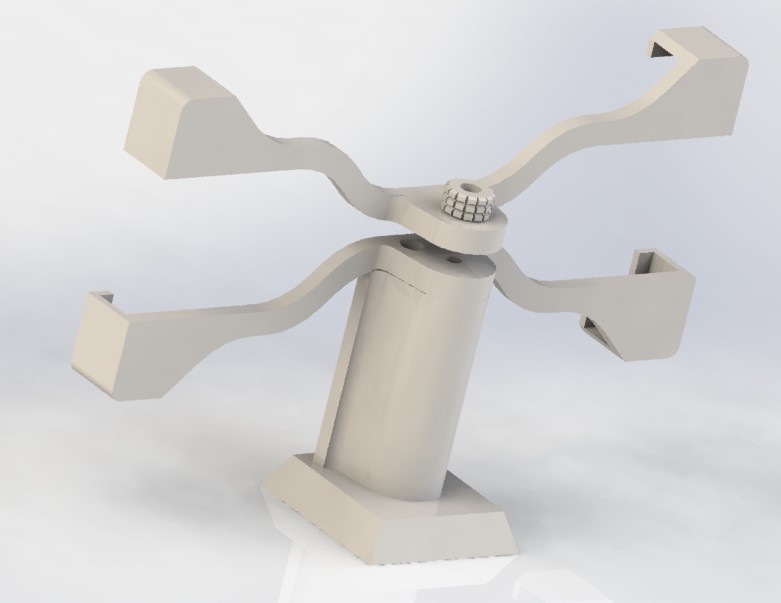

Fig.3 - Final render back view.

    After designing the final piece in Solidworks, it was time to print it. It was printed in transparent PLA, it took approximately 5 hours to print the 4 pieces.

    In terms of specifications, we have the level of quality: Layer Height: 0.2mm, 20 % infill at the base and 100% infill on the supports that hold the phone.

    Here are some photos of the final piece already printed and assembled with the cell phone and tripod.

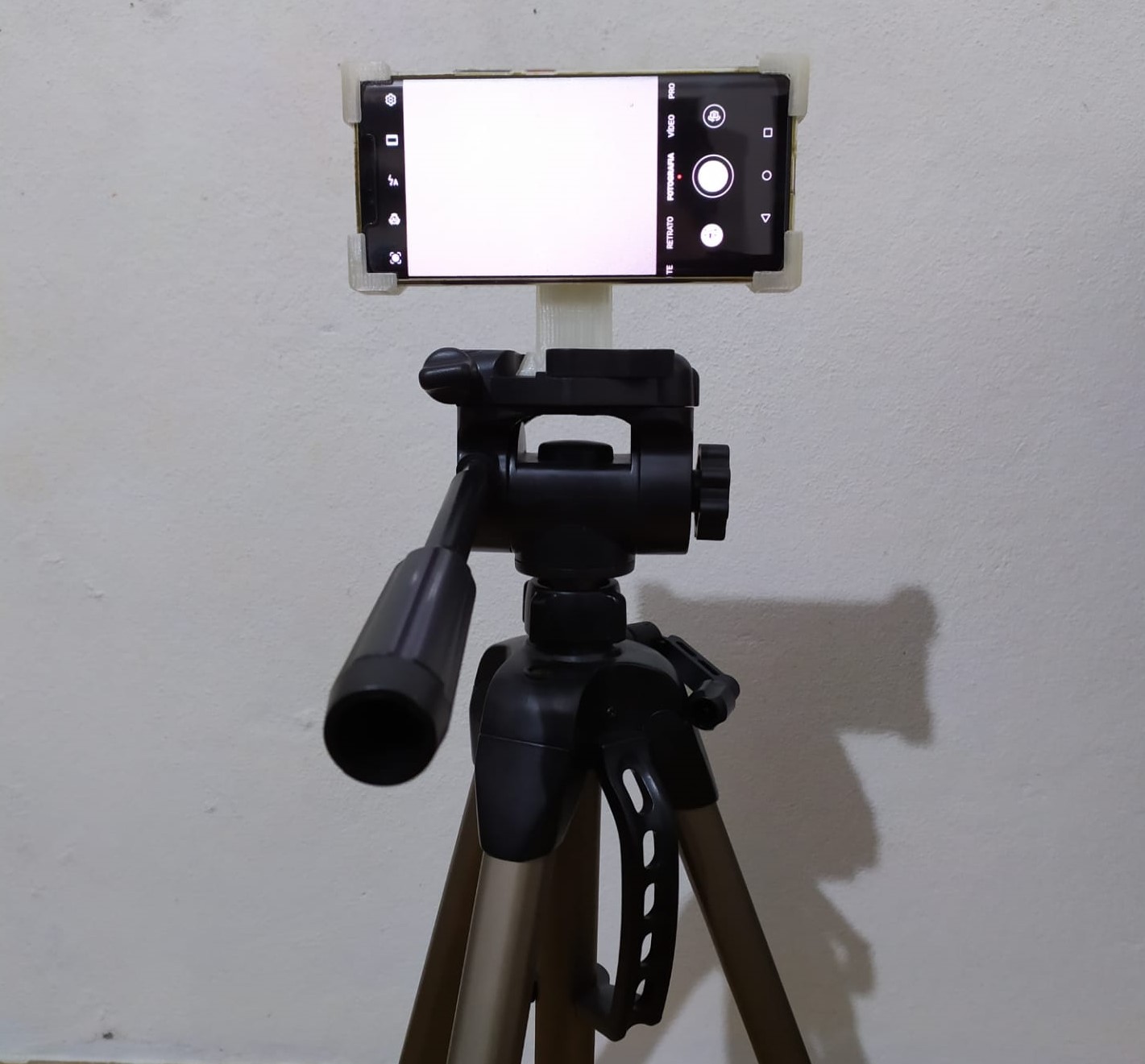

Fig.1 - Final piece already assembled with the phone and tripod.

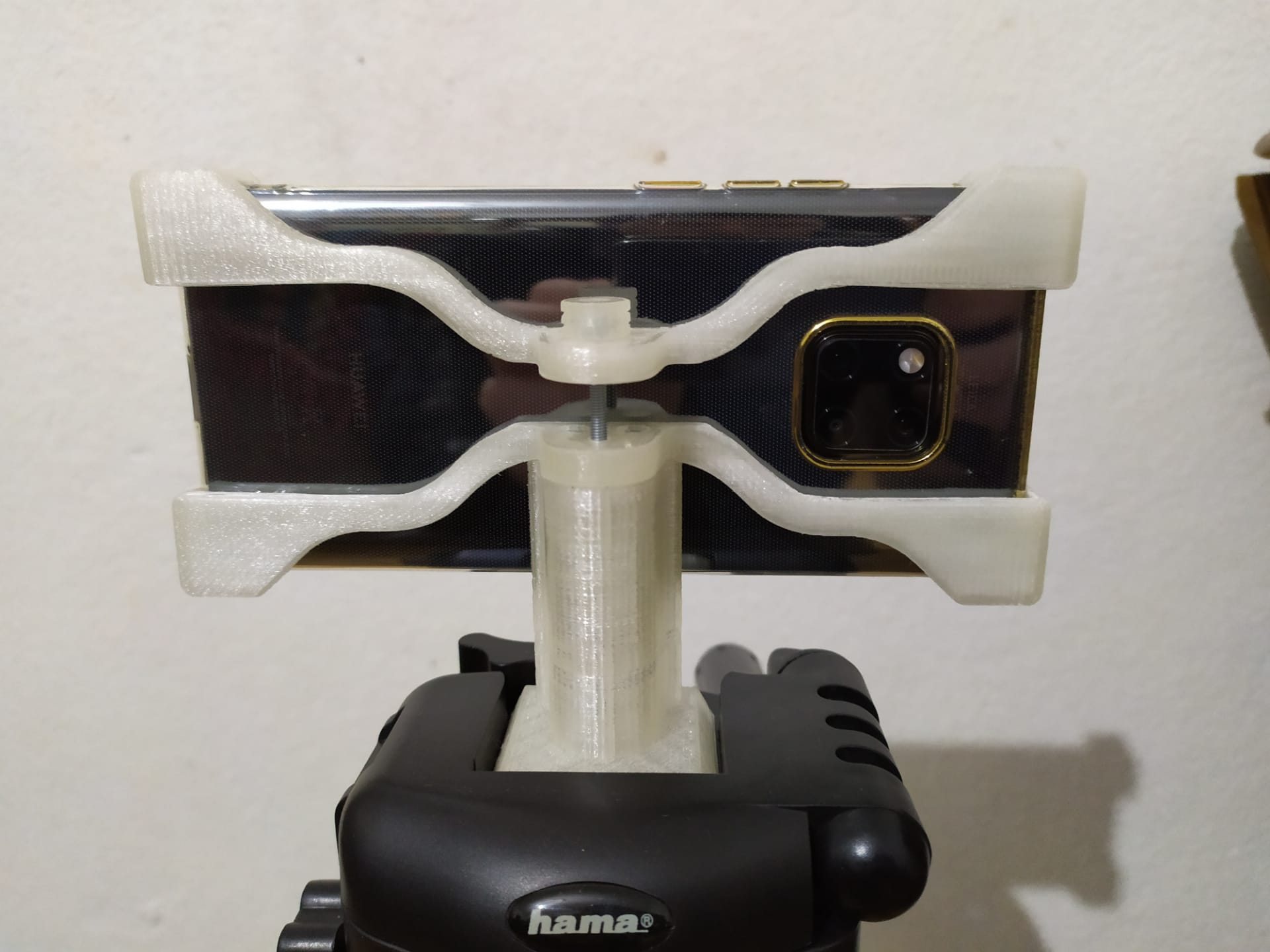

Fig.2 - Holders that hold the phone.

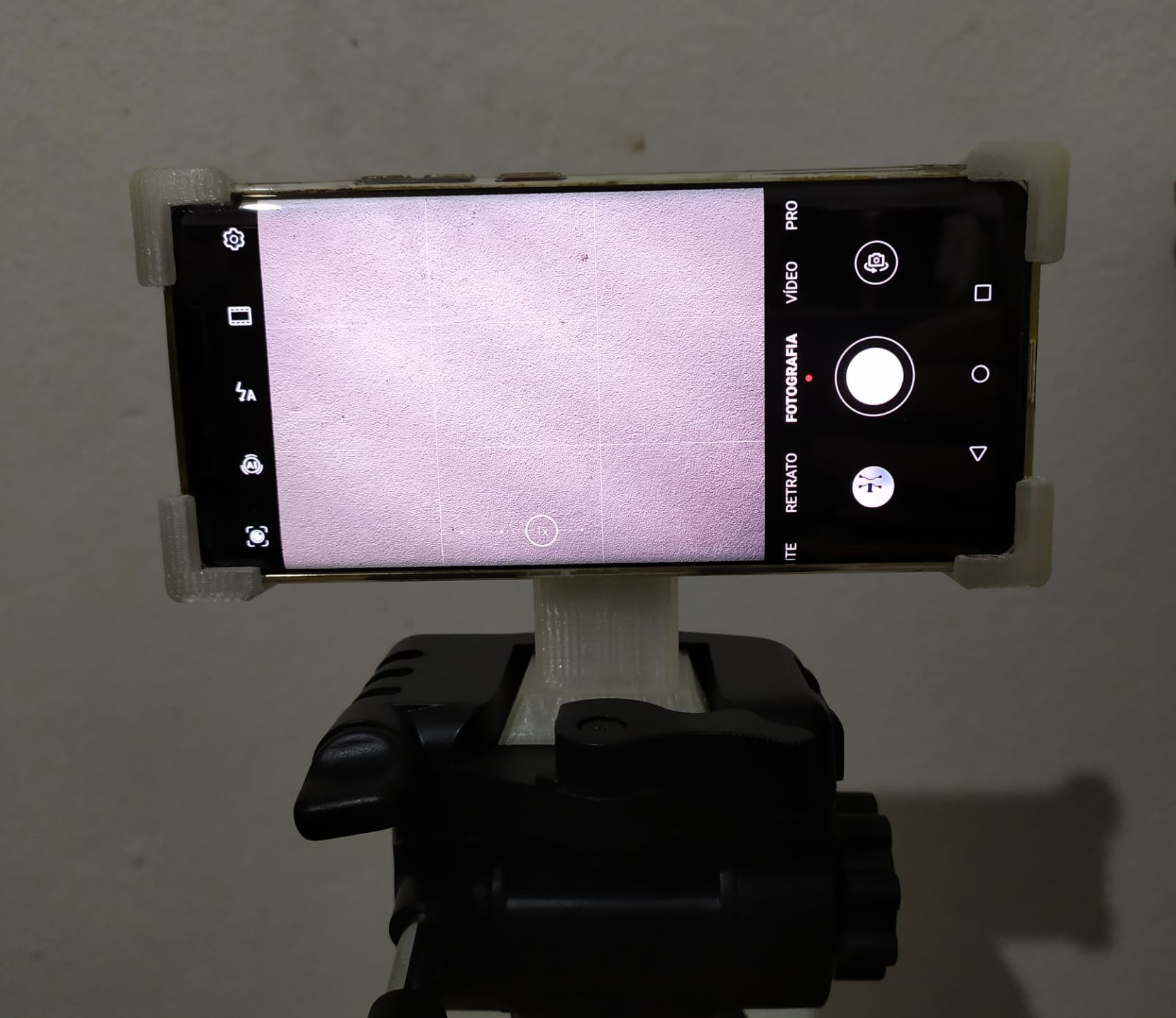

Fig.3 - Front view.

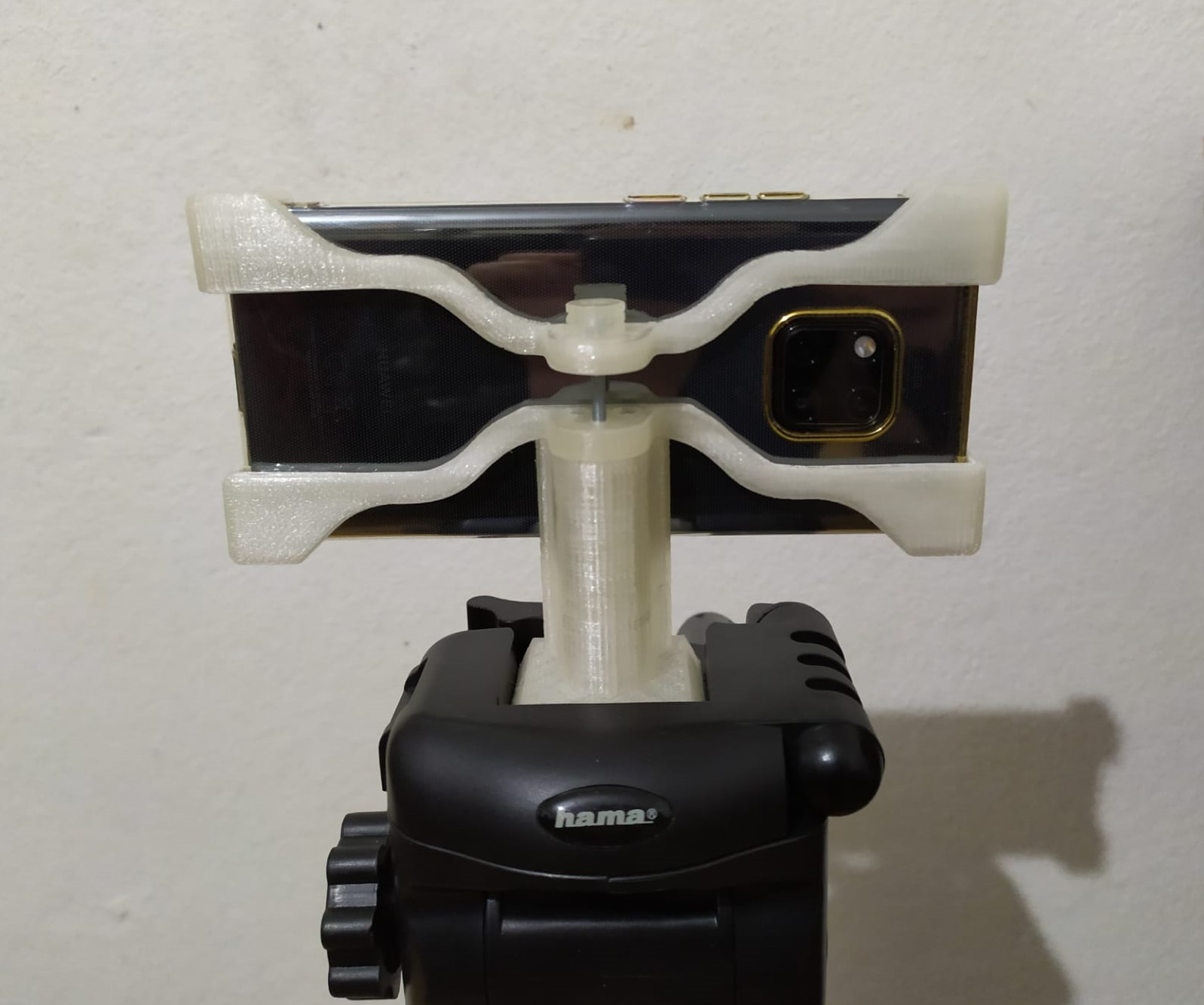

Fig.4 - Front view front highlighting the detail of the screw tightening.
