This project involves a real-time temperature and humidity monitoring system implemented in a bedroom using the SHT35 sensor and a Raspberry Pi. The system reads sensor data every 5 minutes, stores it in a SQLite database, and visualizes the information on a web interface.
The hardware setup consists of:
SHT35 temperature and humidity sensor connected via I2C to a Raspberry Pi.
Raspberry Pi running a Python backend with Flask for data acquisition and API endpoints.
Optional display of historical data through charts in a responsive web page.
SHT35 - Temperature & Humidity Sensor
Feature
Specification
Manufacturer
Sensirion
Model
SHT35
Sensor type
Digital Temperature and Humidity Sensor
Interface
I²C
Supply voltage
2.4 V – 5.5 V
Temperature range
-40 °C to +125 °C
Temperature accuracy
±0.1 °C (typical)
Humidity range
0 – 100 % RH
Humidity accuracy
±1.5 % RH (typical)
Temperature resolution
Up to 0.01 °C
Humidity resolution
Up to 0.01 % RH
Response time
~8 seconds
Power consumption
Very low
Calibration
Factory calibrated
Typical applications
Environmental monitoring, IoT, home automation
Fig.1 - Sensor characteristics SHT35.

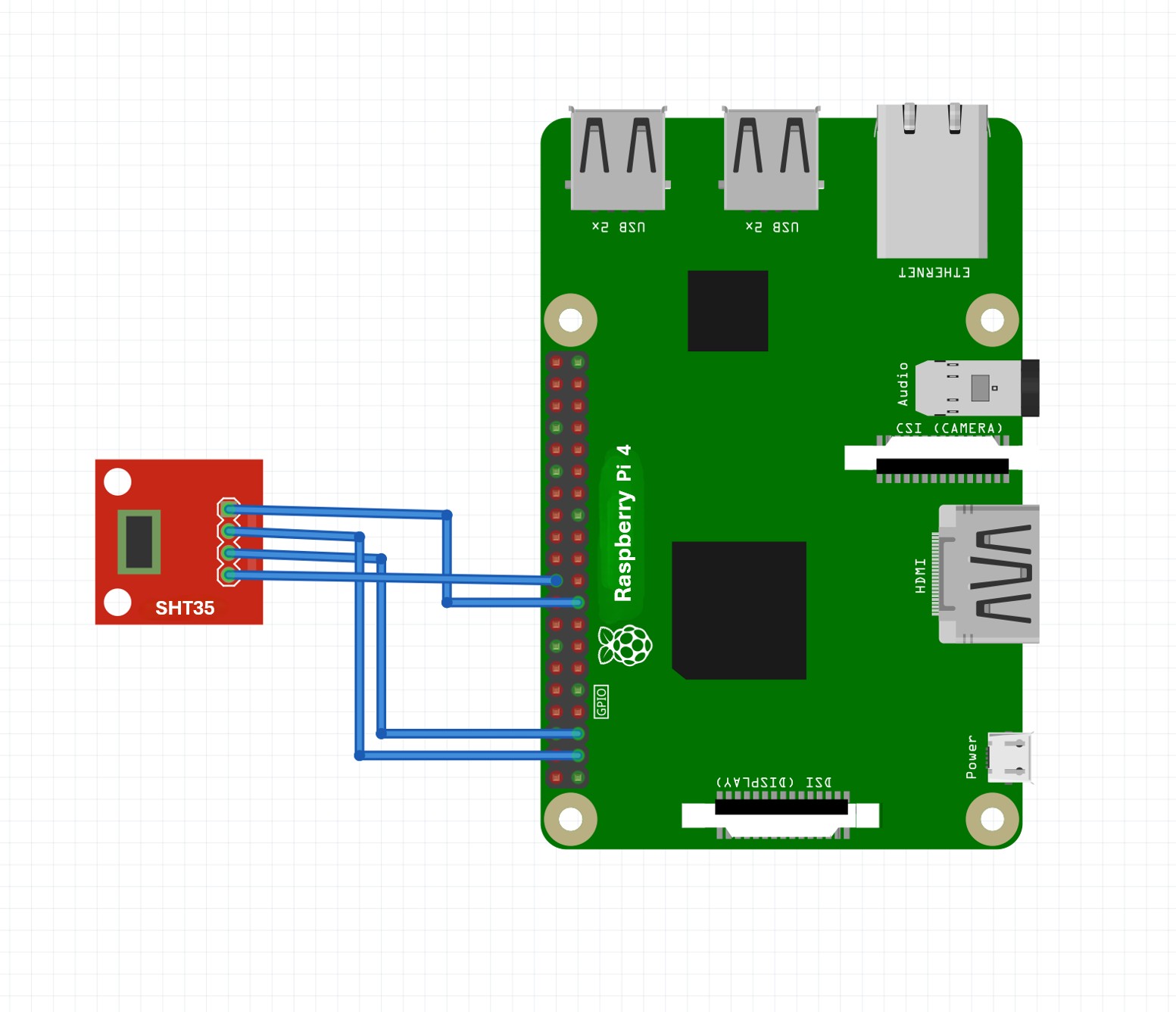

Here is the schematic of the circuit. Connecting the SHT35 Sensor with the Rpi 4 using I2C.
Fig.2 - Schematic of the circuit.
The software implementation includes:
Python script that reads the sensor and inserts data into a SQLite database.
Flask REST API providing endpoints for the latest measurement, daily data, averages, and database download.
Front-end built in HTML/CSS/JavaScript using Chart.js to render interactive graphs of temperature and humidity.
The data visualization is designed for clarity and ease of use:
Left Y-axis shows temperature (°C) and right Y-axis shows humidity (%), allowing both datasets to be overlaid.
Interactive points for each measurement and smooth lines to indicate trends.
Automatic updates every 10 seconds for the latest measurement and 60 seconds for the graph.
The project code is modular and can be extended to multiple sensors.
# Python Flask Backend Example
from flask import Flask, jsonify
import sqlite3
from datetime import datetime
app = Flask(__name__)
DB_PATH = 'temperature_readings.db'
@app.route('/api/latest')
def latest():
conn = sqlite3.connect(DB_PATH)
c = conn.cursor()
c.execute("SELECT timestamp, temp, hum FROM readings ORDER BY timestamp DESC LIMIT 1")
row = c.fetchone()
conn.close()
if row:
return jsonify(timestamp=row[0], temp=row[1], hum=row[2])
else:
return jsonify(timestamp=None, temp=None, hum=None)
@app.route('/api/data')
def data():
# Example endpoint to fetch data of a specific date
return jsonify(values=[])
if __name__ == '__main__':
app.run(host='0.0.0.0', port=5000)
Fig.3 - Full Python code.
This way, I can monitor the temperature and humidity in my room throughout the day (or even the year). And everything is saved in a database for future reference.

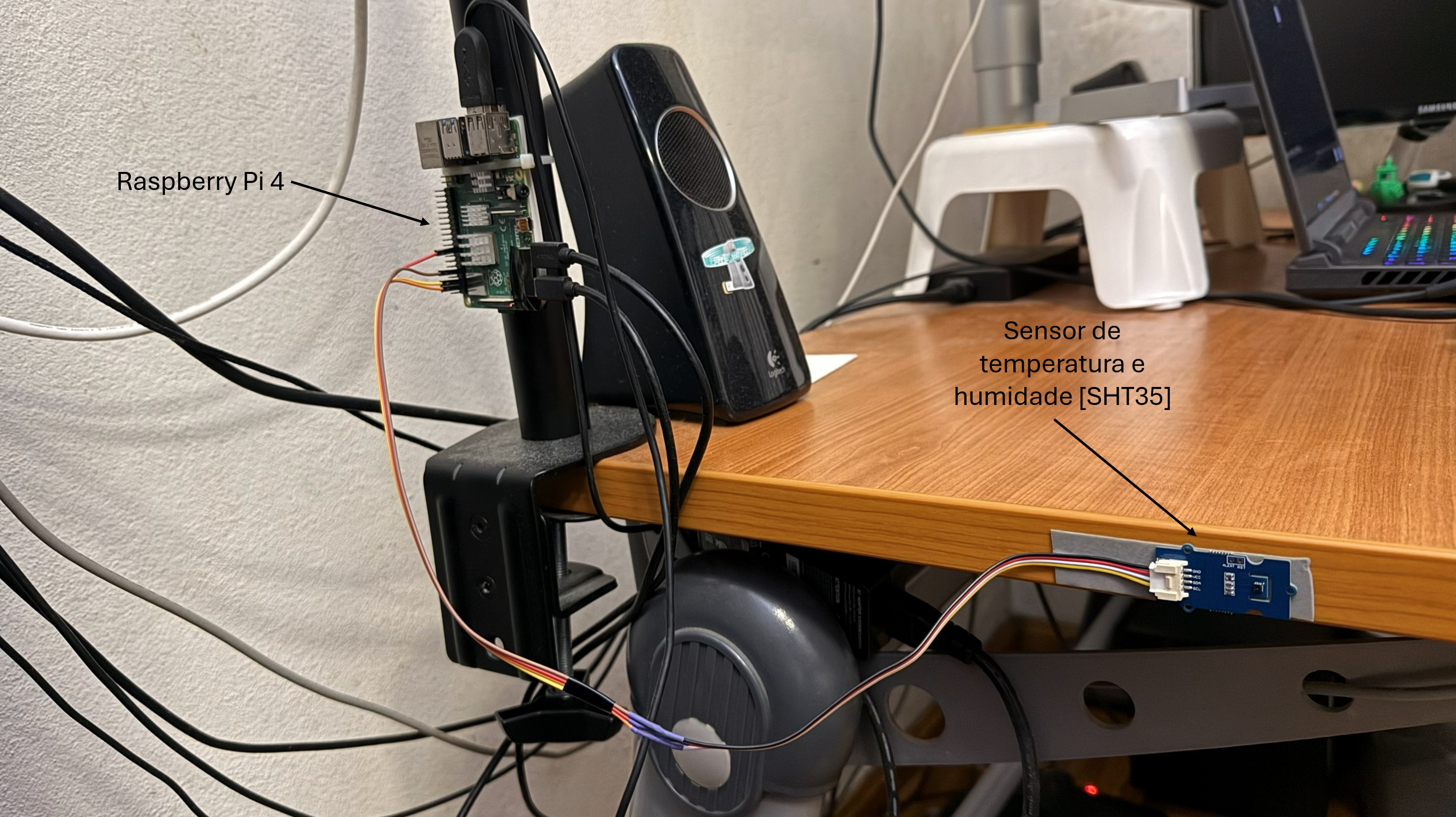

Here's a general overview of how I have the sensor and the Raspberry Pi set up.
Fig.4 - General overview of the sensor and micro.
It is now possible to view temperature and humidity in real time. Measurements are taken every 5 minutes, the values are stored in a database, and a graph is generated relating temperature and humidity as a function of time, you can see here: https://joelbonifacio.dynip.sapo.pt/electro6.html
Temperature and humidity sensor (SHT35) - Bedroom
This project involves a real-time temperature and humidity monitoring system implemented in a bedroom using the SHT35 sensor and a Raspberry Pi. The system reads sensor data every 5 minutes, stores it in a SQLite database, and visualizes the information on a web interface.
The hardware setup consists of:
SHT35 - Temperature & Humidity Sensor
Fig.1 - Sensor characteristics SHT35.
Here is the schematic of the circuit. Connecting the SHT35 Sensor with the Rpi 4 using I2C.
Fig.2 - Schematic of the circuit.
The software implementation includes:
The data visualization is designed for clarity and ease of use:
The project code is modular and can be extended to multiple sensors.
# Python Flask Backend Example from flask import Flask, jsonify import sqlite3 from datetime import datetime app = Flask(__name__) DB_PATH = 'temperature_readings.db' @app.route('/api/latest') def latest(): conn = sqlite3.connect(DB_PATH) c = conn.cursor() c.execute("SELECT timestamp, temp, hum FROM readings ORDER BY timestamp DESC LIMIT 1") row = c.fetchone() conn.close() if row: return jsonify(timestamp=row[0], temp=row[1], hum=row[2]) else: return jsonify(timestamp=None, temp=None, hum=None) @app.route('/api/data') def data(): # Example endpoint to fetch data of a specific date return jsonify(values=[]) if __name__ == '__main__': app.run(host='0.0.0.0', port=5000)Fig.3 - Full Python code.
This way, I can monitor the temperature and humidity in my room throughout the day (or even the year). And everything is saved in a database for future reference.
Here's a general overview of how I have the sensor and the Raspberry Pi set up.
Fig.4 - General overview of the sensor and micro.
It is now possible to view temperature and humidity in real time. Measurements are taken every 5 minutes, the values are stored in a database, and a graph is generated relating temperature and humidity as a function of time, you can see here: https://joelbonifacio.dynip.sapo.pt/electro6.html
