Temperature Sensor For Aquarium

The temperature sensors for the aquarium on the market tend to have a very large error or are analogical.

So i decided to make a temperature sensor myself.

I defined that the objective would be to measure the temperature of the water and measure the ambient temperature of the room where the aquarium was, thus allowing a comparison.

The material used for the construction of this sensor was:

1 x Atmega 328p;

1 x LCD 16x2;

1 x Pushbutton;

2 x Switch;

Lots of wires;

1 x Temperature sensor;

1 x Waterprof temperature sensor;

1 x Potentiometer.

Two temperature sensors were used, one was isolated thus allowing it to be 100% waterprof, and another in its normal state, that will measure the room temperature.

The sensors used were: - DS18B20.

The LCD will indicate the temperature of the water and the temperature of the room.

Fig.1 - Electronic of the temperature sensor.

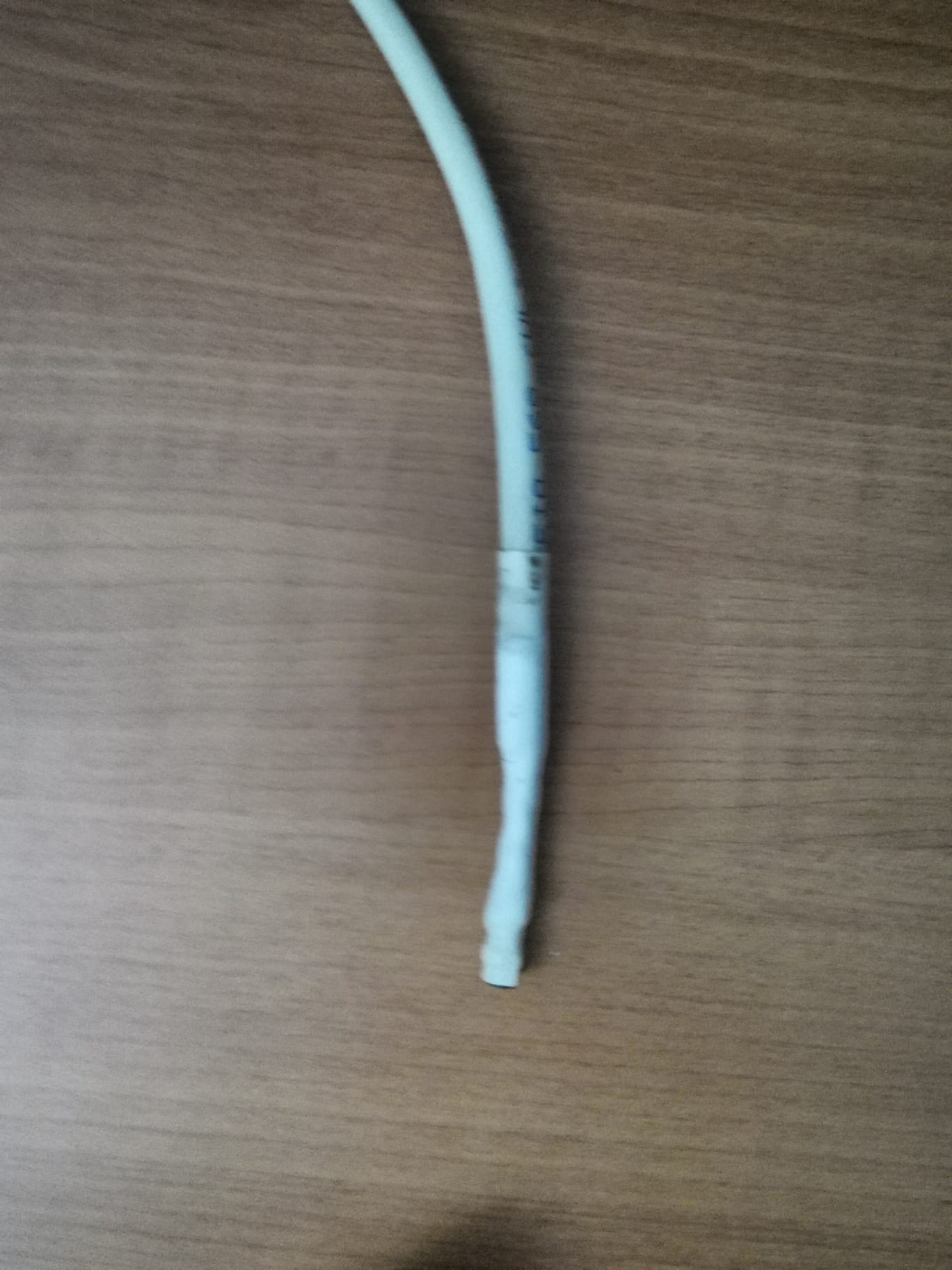

Fig.2 - Normal DS18B20.

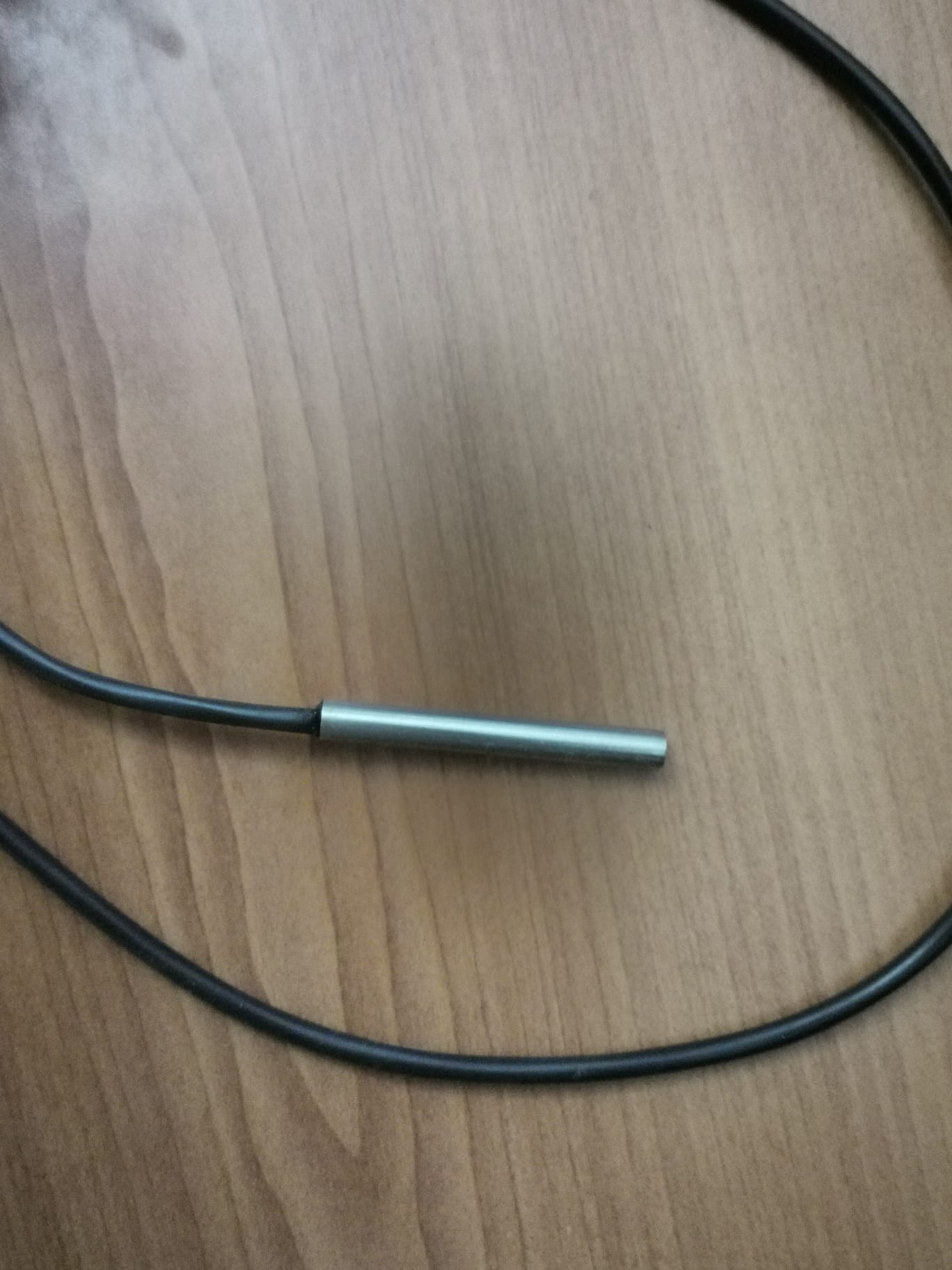

Fig.3 - Waterprof DS18B20.

Fig.4 - Geral of the temperature sensor.
